Location

Choisy-le-roi (94)



Architect

Brénac & Gonzalez



Product

Expanded metal panels

Mesh
AFR-ACADEMY 110 with constant and variable pitch


Material and finish

Gunmetal-colored anodized aluminum



Date

2013



Category

SUNSHADE



About this project

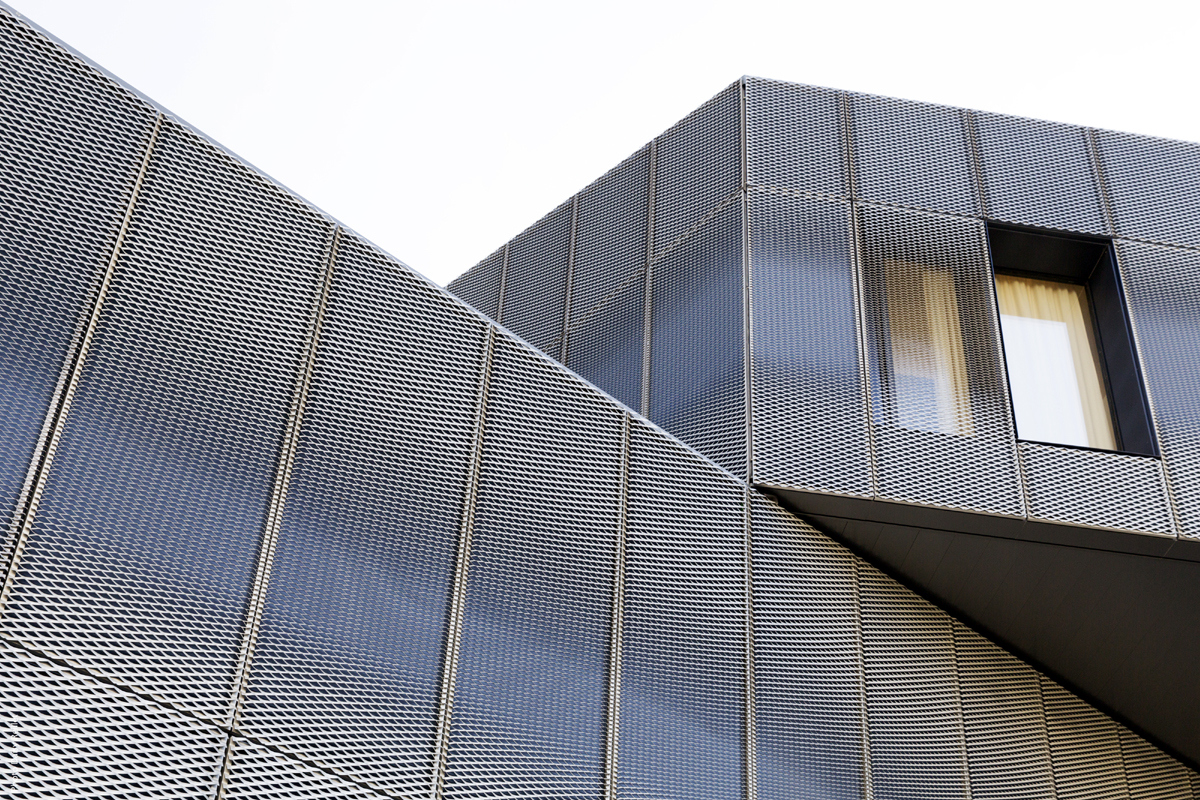

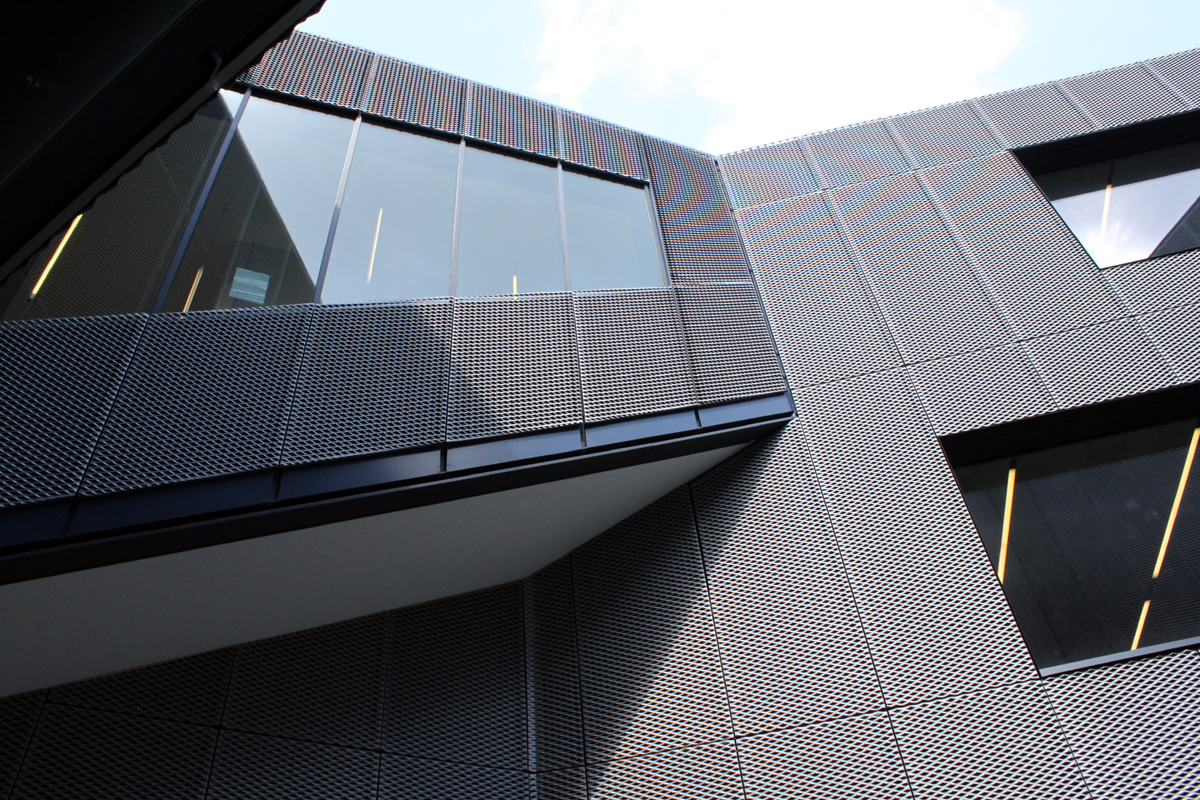

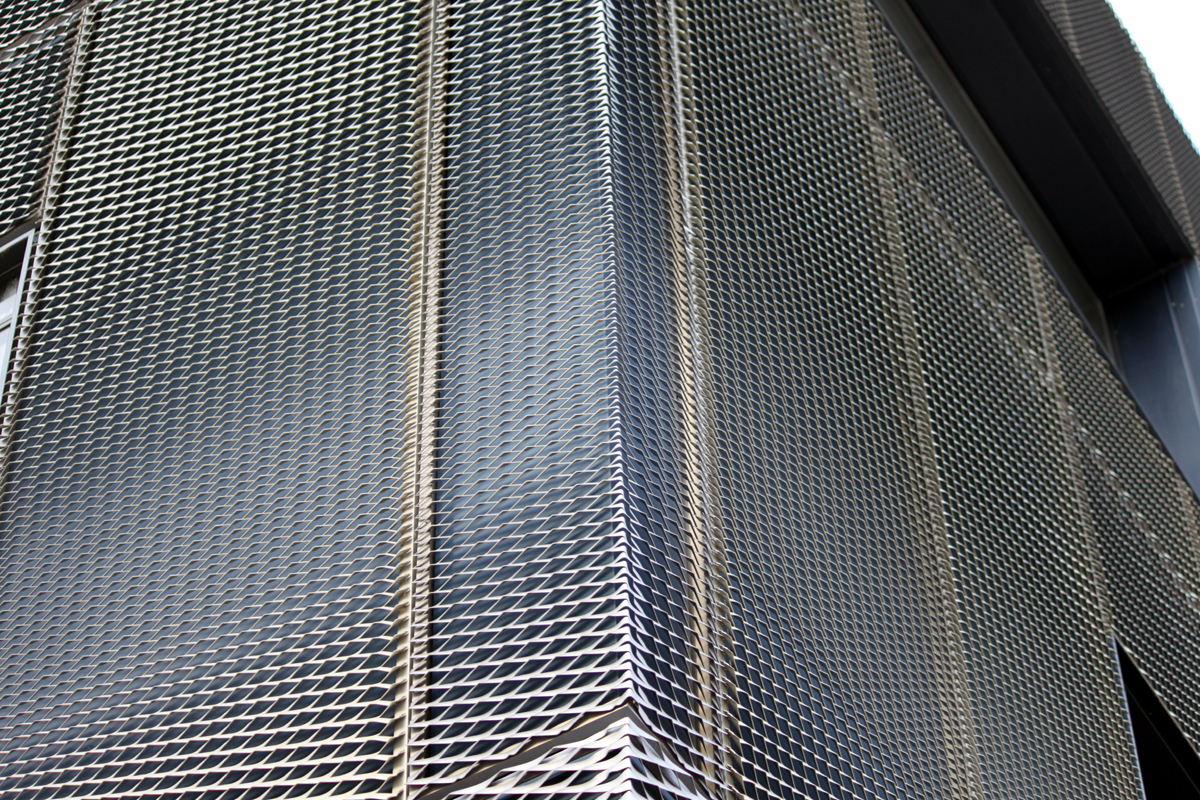

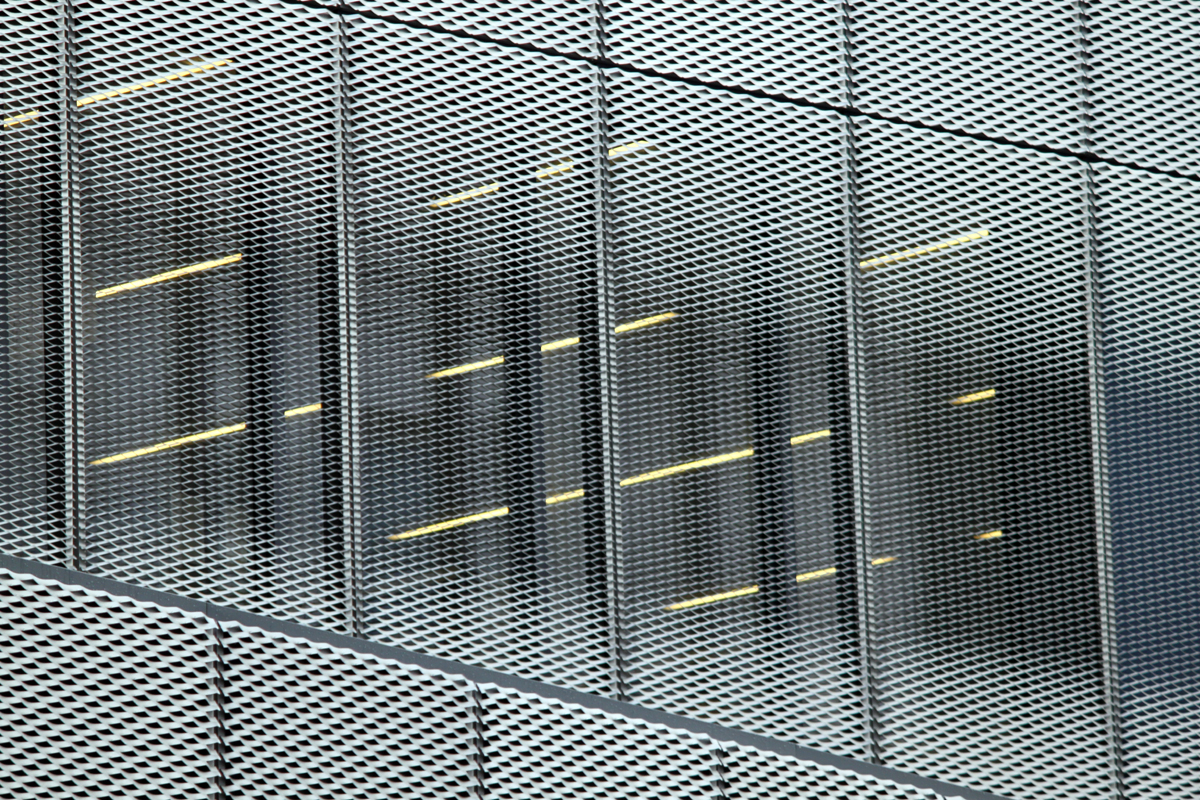

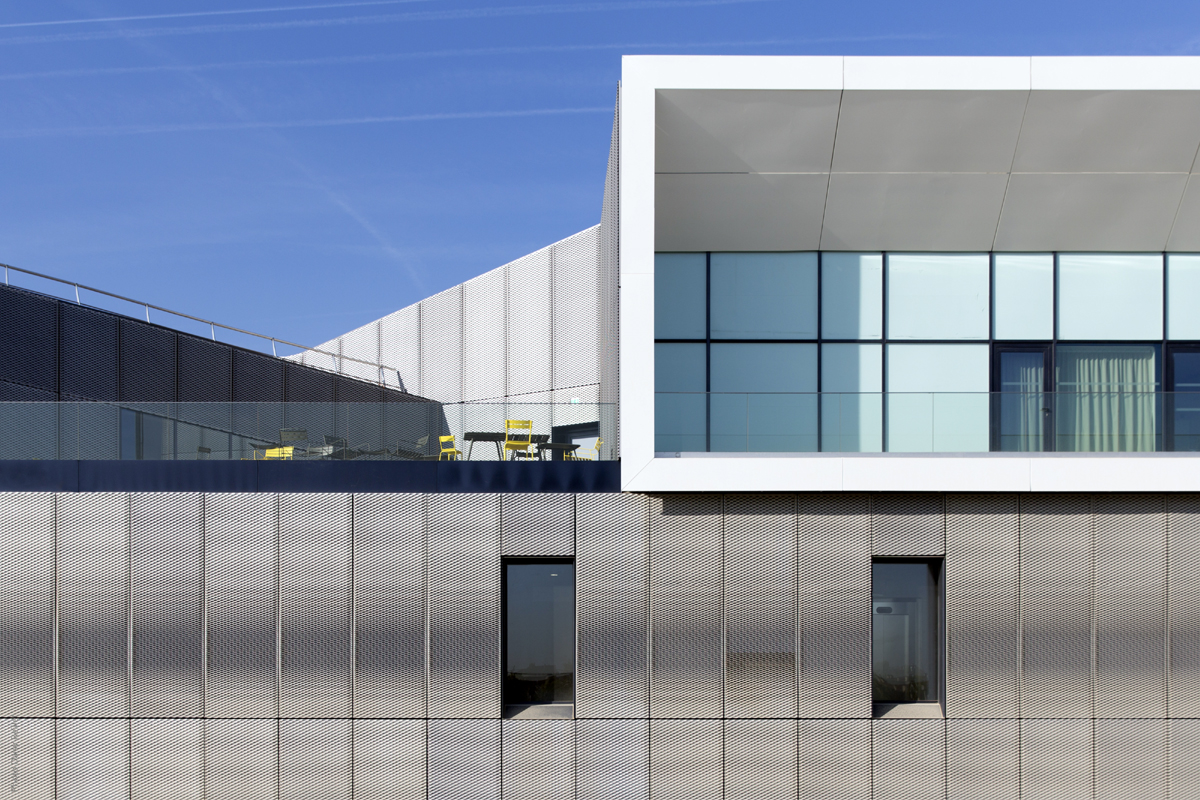

The building's facades are clad with expanded metal panels, hung by a system of rails and sliders (Alucobond-type assembly).

The panels were composed of an expanded metal sheet welded to an angle iron frame.



Special features :

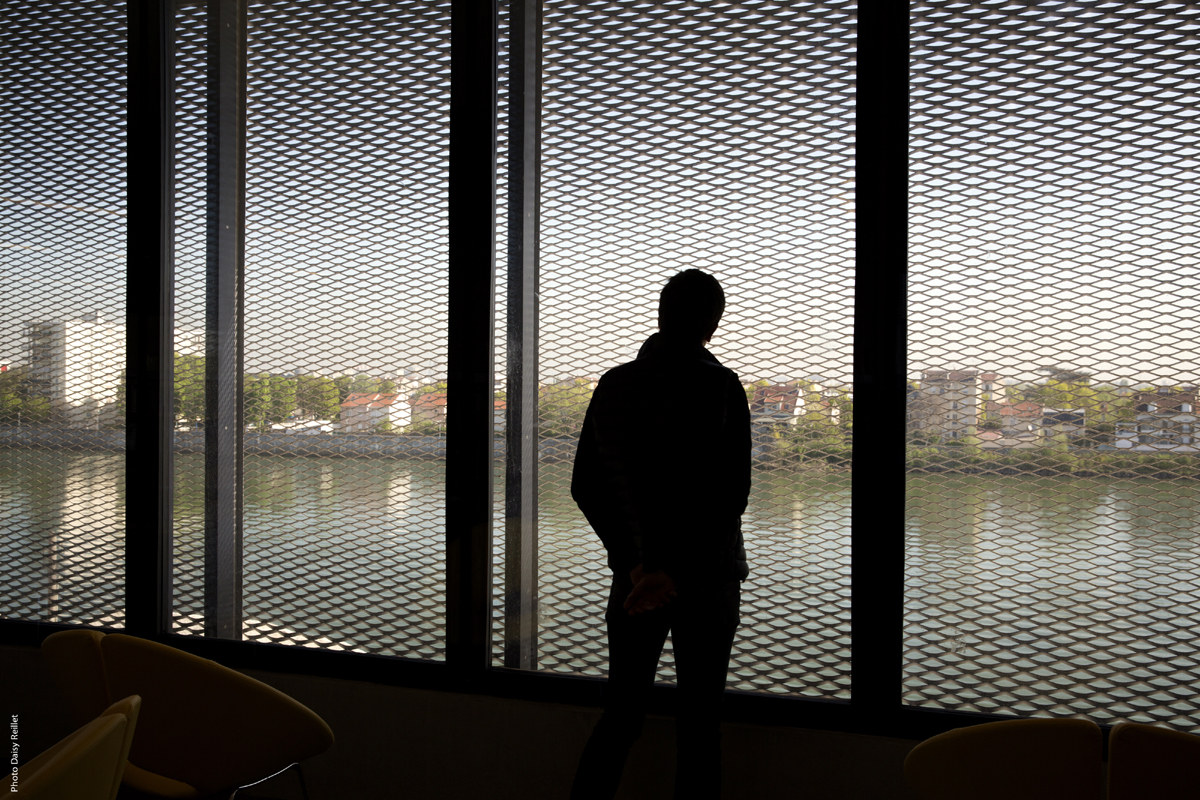

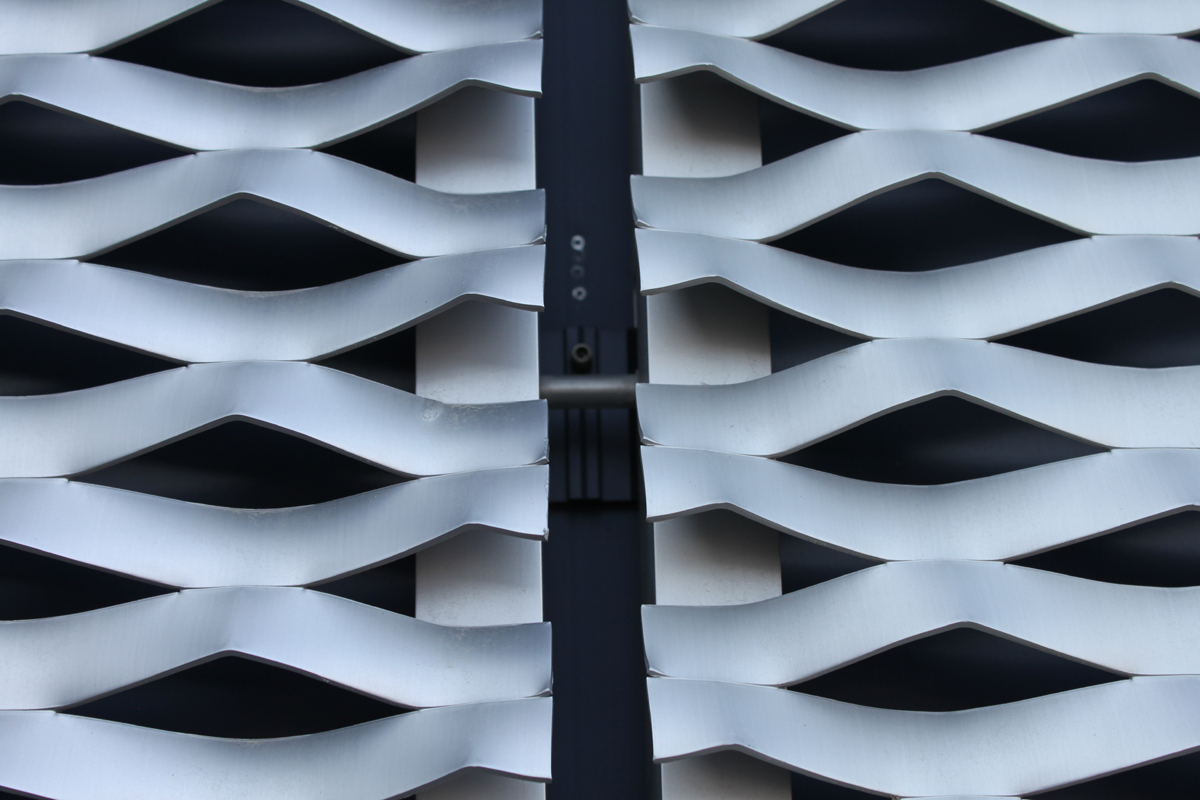

    The progressive variable pitch of AFR-ACADEMY 110 type expanded metal, giving an opening of 26% to 70%, was designed to open up the view at eye level, while maintaining the effectiveness of solar protection and natural light.
    Expanded metal panels were produced to measure, according to the layout, in dimensions of up to 1500 mm in width and 4000 mm in height.

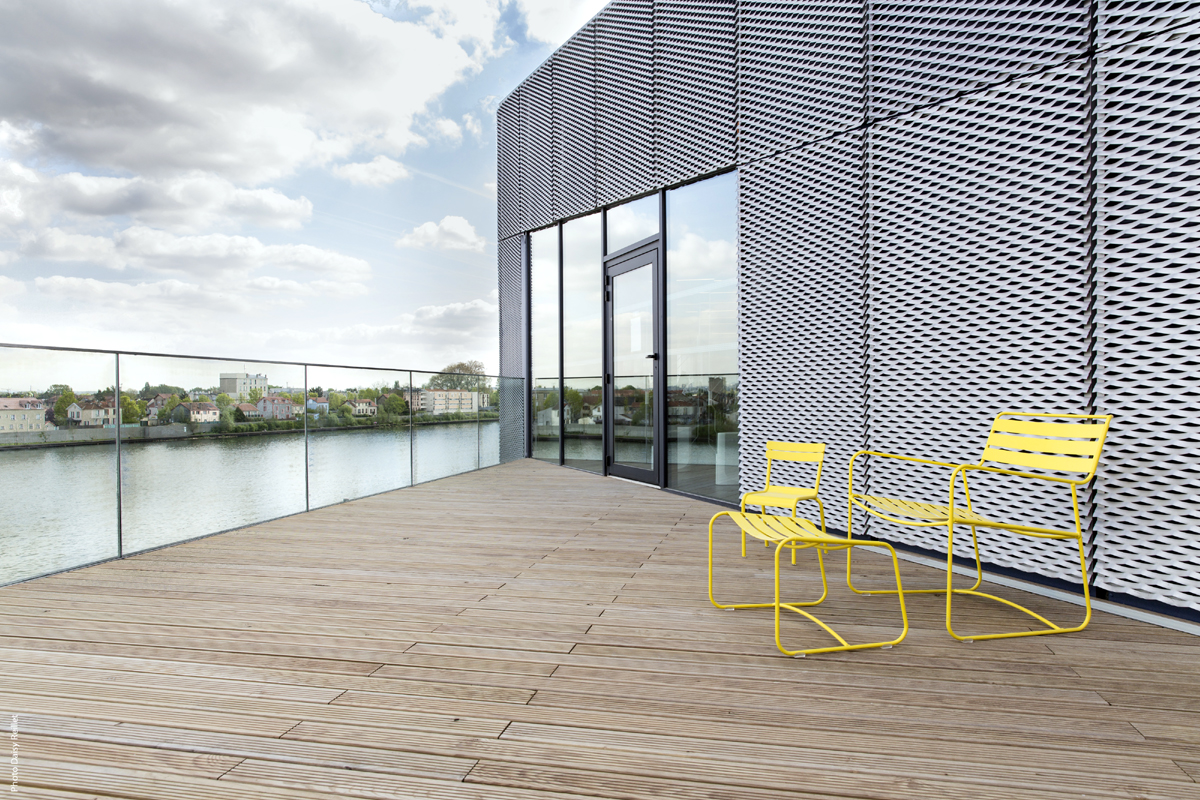

    Perfect mesh alignment was achieved in all situations, including at the patio railings.
    Anodizing was chosen to ensure the product's durability (corrosion protection) and to add color while preserving the material's metallic appearance.



Quote: “A media library always represents a place of knowledge, so the figure we proposed for the project is a spiral, an image that symbolizes progress, advancement through knowledge, social ascent through culture, but also inter-generational mixing” Brénac and Gonzalez

Médiathèque Louis Aragon, Choisy-le-Roi (94): http://mediatheque.choisyleroi.fr/index.php?option=com_content&view=category&layout=blog&id=38&Itemid=4

Louis Aragon is a French writer, novelist and poet born in 1897. After participating in the Dada movement, he became one of the main creators of the Surrealist movement, along with other poets such as André Breton and Paul Éluard.



Photos : Daisy Reillet / Afracom
